Hillstrike REV-17

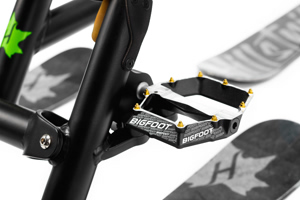

HPS™ Pedal system

Standard downhill super-grip foot pedals provide confidence for carving deep snow at the local terrain park.

Rear parallelogram system

Our unique articulating rear ski system adds lower body fun and exercise to ski-biking by simulating the action of skiing perfectly.

Safety leash

A safety leash tethers the Type 3 ski-bike to your body to keep the mountain resort terrain park safe for everyone.

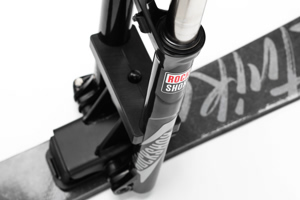

Front suspension

RockShox Recon heavy-duty front shocks make even the harshest riding conditions easy and effortless.

3 custom detachable skis

Custom reinforced wooden core skis with replaceable urethane pivot stabilizers make the Hillstrike REV-17 the next hit in snow sports.

Extensive testing

Before we made our trikes available they were subject to field testing and high tech tests.
By doing this we can say with comfort, that our frames are built to last.

Technical specifications

decals Apple green, Mint, Bright orange, Vivid red, Panther rose
height 91 cm (35,8″)
width 62 cm (24,4″)
length 186 cm (73,2″)
seat/chairlift hook height 51.0 cm (20,1″)
stem FUNN Funnduro, Black, Steerer Clamp D: 1-1/8″
grips FUNN Combat II, Grey, Lock on, D: 30mm
pedals FUNN Big Foot Evo, Black, W105mm x L102mm x H 16.8mm, Removable pins
frame High-grade welded aluminum
front suspension RockShox Recon Silver, 120mm (4.7″) travel, 15mm (0.6″) axle
hillstrike skis Custom Hillstrike directional twin skis 89cm (35″), full wood core, full steel edges
safety leash Coil leash, Break-Away Technology, 3m (10ft) stretch
replaceable parts Handlebars, Fork, Pedals, Safety Leash, rubber joints, rubber bumpers and Skis
